Lab 2: User Interactions



The goal of this lab is to get a first taste of designing programs with user interactions. In general, the persistent information about objects, which are manipulated by the program, is stored in the collection of objects, which represent the model. The information about the current state of the model is provided to the user in the form of one or more views. The views may also provide for initiating a user interaction with the program, such as requesting that model state be altered, or some model behavior (represented in its methods) be invoked. The communication between the model and the view is implemented in the controller.



We will focus on the most basic kind of user interaction, namely providing the input values to be used to define an object in the model.



The context for the lab is again a balloon and a list of balloons, and the view we will use is similar to the one used in earlier labs. In addition, we will also learn how to provide input from the console.



Part A: Getting Started

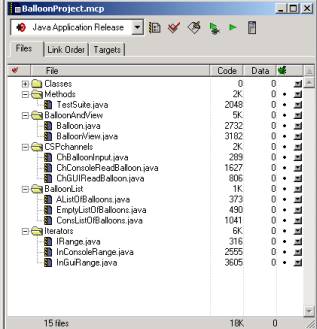

Download Lab2.exe, extract it, open the project. You will see the following files:







·        The Balloon class is the familiar class and represents the model for this project.

·        The BalloonView is a somewhat simpler version of the view that was used in earlier projects. It consists of three TextFieldViews and one ColorView, allowing the user to specify the coordinates of the center, the radius of the balloon and its color.

·        There is no explicit definition of the console. Every class that wishes to use the console only specifies that it implements ConsoleAware. This gives the class access to the console object and its methods. However, there is only one console defined for each project and all classes, which implement ConsoleAware, share it.

·        The three classes in the CSPchannels group provide the controller classes that facilitate reading of the Balloon data from either the console or the BalloonView. The ChBalloonInput interface specifies a single method

public Balloon read();

which determines the user's input values and constructs and returns a Balloon object.

·        The BalloonList group contains our standard definition of a list of Balloon objects.

·        The last group contains the IRange iterator interface we have used earlier, and two implementations - one that traverses over the console input and one that iterates over user's input via GUI.



!!!!! Sketch out the UML diagram for this class hierarchy.



Part B: Reading Data for One Balloon Object.



The interface ChBalloonInput represents a channel that provides for input of values for one Balloon object. The method

public Balloon read();

will extract the user supplied information from the appropriate view. There are two (incomplete) implementations of this interface. Your task is to complete the implementations.



The console input.

The following code processes user input to the console and produces an integer, if user input can be interpreted as such:

public int n = console.in.demandInt("Type in an integer");

In case of error in the input the user is issued an error message and a prompt to correct the error. The only way to terminate the user interaction is by supplying the input of desired type.



!!!!! Add code to the ChConsoleReadBalloon class so that it reads both x and y coordinate and also the radius.



!!!!! Design the method demandShade, which notifies the user of input error if the value is not within the range between 0 and 255 inclusive, and repeats the request indefinitely - until a valid input is supplied. This is best implemented by using recursion.



!!!!! Use the method demandShade to complete the demand for a Balloon object data with a demand for the three color shades - red, green, and blue.



The GUI input.

The following code processes user input from a text field view and produces an integer, if user input can be interpreted as such:

public int x = xTFV.demandInt();

In case of error in the input the user is issued an error message in a modal dialog, and a demand to correct the error. The only way to terminate the user interaction is by supplying the input of the desired type.



!!!!! Complete the code to in the BalloonView class demand the values for the y coordinate and for the radius.



!!!!! Complete the code in the BalloonView class to extract the color specified by the ColorView. Use the method

public Color c = cView.getColor();



Part B: Reading Data for Several Balloon Objects.



In many cases the user supplies input for a list of objects in the same class. As before, the input can come from a variety of sources - console and GUI being two examples we will focus on. Typically the user does not know ahead of the time how many objects will be given, but needs to signal in some fashion that all input values have been provided, and the program, which iterated over the input, can continue with other tasks.



On the program side the desired interface is the same as the IRange we have used earlier. The program instantiates an iterator for the desired input source, and loops extracting the user's input from current() until hasMore() indicates that no more input is available, calling next() to advance to the next input item.



The implementation of the iterator has the following behavior. The class member data are:

·        an object in the target class (in our case Balloon b)

·        a boolean state variable submitted, which is set to false while a new set of values is being read in and is true if Balloon b is properly defined

·        a boolean state variable closed, which is set to true when the user indicates that there is no more input available.



The constructor for the GUI iterator constructs a non-modal GUI for user input. The GUI needs to include buttons for submit and cancel actions - and it needs some member data for this task.



The console object already exists, so there is no need to create one. The console input iterator has no additional member data.



The method current() returns the value of the Balloon object b.



The method hasMore() returns the true if a value for the balloon has been submitted and the input has not been closed.



The method next() first sets the state variable submitted to false, then calls the read() method, which processes the input from the console, or waits for notification of the input completion when reading input from GUI.



The GUI either processes the input through the submit action, which sets the state variable submitted to true, or it processes the cancel action, which sets the state variable closed to true, and closes the dialog.



In console, if the read() method succeeds in accepting user's input, it sets the value of Balloon b to this user's input and it sets the state variable submitted to true. Otherwise it sets the state variable closed to true and prints a message indicating the end of input.



!!!!! Write the code in the TestSuite to test both the console and the GUI input iterators.



!!!!! Modify the code for the console input, so that the balloon coordinates must be given in the 0-400 range, and the radius is given in the 1-200 range.

Hint: Generalize the demandShade and requestShade methods so they each take the two bounds as arguments.



!!!!! In order to implement the same restrictions on the GUI input, we can use JPT filters. Look at the documentation and find out how to define RangeFilter.Long. Define two such filters as additional member data in the BalloonView class - one for the x and y coordinates and one for the radius. Look for the documentation for TextFieldView and see how you can modify the demandInt method calls in the getBalloon method.
