Assigned:
Thu 20 May 2010
Due:
Thu 03 Jun 2010
This project requires that you use a server to build variations on a simple search engine. For each variation you will run and evaluate a number of queries.
This project
requires that you construct a search engine that can run queries on a
corpus and return a ranked list of documents. Rather than having you
build a system from the ground up, we are providing a Web interface to
an existing search engine index. That interface provides you with
access to corpus statistics, document information, inverted lists, and
so on. You will access it via the web, so you can implement your
project in any language that provides you with Web access, and you can
run it on any computer that has access to the Web. Computers in the
CCIS department will work, but you are more than welcome to use your
own computer.
One of the nice things about the CGI interface is that you can get an
idea of what it does using any browser. For example, the following
CGI command:
http://fiji4.ccs.neu.edu/~zerg/lemurcgi/lemur.cgi?v=encryption
will provide
you a list of the documents that contain the word "encryption". Go
ahead and click on the link to see the output (in a separate window).
It lists the number of times the term occurs in the collection (ctf),
the total number of documents that contain it (df) and then, for each
of the documents containing the term, it lists the documents id, its
length (in terms), and the number of times the term occurs in that
document.
The format is easy for a human to read and should be easy for you to
parse with a program. However, to make it even simpler, the interface
provides a "program" version of its interface that strips out all of
the easy-to-read stuff and gives you a list of numbers that you have
to decipher on your own (mostly it strips the column headings). Here
is a variation of the link above that does that. Click on it to see
the difference.
http://fiji4.ccs.neu.edu/~zerg/lemurcgi/lemur.cgi?g=p&v=encryption
From class, it should be pretty straightforward to imagine how to create a system that reads in a query, gets the inverted lists for all words in the query, and then comes up with a ranked list. You may need other information, and the interface makes everything accessible (we hope). Hema's wiki page contains a rundown of some of the commands, and there is a help command, too:
http://fiji4.ccs.neu.edu/~zerg/lemurcgi/lemur.cgi?h=
Play around with the engine to ensure it makes sense.
First, fiji4.ccs.neu.edu is not accessible via name from all CCIS
internal networks; you may need to use the (local) IP address
10.0.0.176 instead. From outside CCIS, the fiji4.ccs.neu.edu name
should always work.
Three very important tips:
Second, in order to get efficient processing out of this server, you should
string as many commands together as you can. For example, if you want to
get term stemming, stopping, and statistics information for three terms, ask
for them all at once as in:
http://fiji4.ccs.neu.edu/~zerg/lemurcgi/lemur.cgi?c=encryption&c=star&c=retrieval
(If you use
the program mode version of the same
command, the Lemur images are
dropped.) This is because there is some overhead getting the process
started, and putting commands together amortizes that over several
requests. It works to do them separately, but it might take
longer.
And third, some things will be inefficient this way, no matter what.
You may find it useful to use
the file
listing stem classes and
the file that maps between internal and external
docids
rather than using calls to the server.
We have set up a database for you to use for this
assignment. They are taken from the AP89 subset of the TREC corpora and
consist of 84,678 news stories from the Associated Press in 1989 (here is
more information about the corpora if you're curious). In fact, we've set up four versions of the
database: all four combinations of using or not using each of stemming
and stopping. The collections contain the same documents, but the
inverted lists will obviously be different. The "d=?" command will
provide you with useful information about the databases.
The stop list that we used (for the two versions with stopping) is the
Inquery stop list and includes 418 words. You can download a list of those words
here, since you will probably find it useful
for your own query processing. Note that the "c=term" command (and
"t=term") also shows the stopword status of a term (though be careful
that you only pay attention ot the stopword status of a word on a
database that uses stopping).
When stemming was applied, we used the KStem stemming algorithm. If
you are running on an unstemmed collection, use the "c=term" command
to get term statistics about the term. It will return stemming
information, but you should ignore it. If you are running on a
stemmed collection, the "t=term" command is also useful. Both "c="
and "t=" tell you the stemming and stopping status of the word;
however, the former gives you term statistics for the original
word rather than the stem and the latter gives you term statistics for
the stem rather than the original word. Having both commands
available can be useful because of the way Lemur does stemming: it
does not stem capitalized words that are not at the start of a
sentence. As a result, stemmed collections will have american
converted to
america but American will not be changed. Whether this
behavior is "correct" or not is a matter of opinion; you just have to cope
with it. (By and large you will be safe assuming that stemming always
happens.) Here is a file that lists all stem classes appearing in this
database (the format is "root | variant1
variant2 ..."). It actually includes more words than are in AP89, but
everything in AP89 definitely appears.
Here is a set of 25 queries taken
from TREC in the format "querynum. query".
These queries have been judged by NIST against AP89 (using the pooling
method). To help you with your analysis below, the queries are sorted
in order of the number of relevant documents in the collection: the
first query has 393 relevant documents and the last has only one
(the complete
distribution is also available).
Your assignment is to run those queries against the provided
collection, return ranked lists in a particular format, and then
submit the ranked lists for evaluation.
Implement the following variations of a retrieval system:
Vector
space model, terms weighted by Okapi tf only (also referred to as
"Robertson's" tf; see note), inner product similarity between
vectors. Note that you currently do not have sufficient
information to calculate the document length vector easily, so
pure cosine similarity isn't used.
For Robertson's tf (also referred to as "Okapi tf")
on documents use OKTF=tf/(tf + 0.5
+ 1.5*doclen/avgdoclen).
On queries, Okapi tf can be
computed in the same way, but use length of the query instead
of doclen.
Vector
space model, terms weighted by Okapi tf (see note) times an IDF
value, inner product similarity between vectors. The database
information command provides collection-wide statistics that you
need.
You will have to use for the weights OKTF x IDF where OKTF is as shown
above.
Language modeling,
maximum likelihood estimates with Laplace smoothing only, query
likelihood. The database information command provides collection-wide
statistics that you need.
If you use multinomial model, for every document, only the
probabilities associated with terms in the query must be estimated
because the others are missing from the query-likelihood formula (consult
slides on pages
13-19).

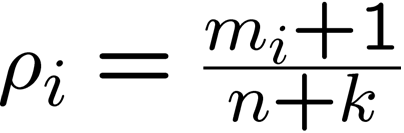

For model estimation use maximum-likelihood and Laplace smoothing. Use
formula (for term i)
where m=freq count (tf) , n=number of terms in document (doc length) , k=number of unique terms in corpus.
Language modeling, Jelinek-Mercer smoothing
using the corpus, 0.8 of the weight attached to the background
probability, query likelihood. The database information command
provides collection-wide statistics that you need.
The formula for Jelinek-Mercer smoothing
is
where P is the estimated probability from document (max likelihood = m_i/n) and Q is the estimated probability from corpus (for simplicity, you may use background probability = cf / total number of terms in the corpus).
BM25, as described in the CMS IR model slides and in class.
As a starting point, you may use the parameter settings suggested
in the BM25 example given in those slides
Note that
Okapi tf is often referred to as "Robertson's" tf, and if you look up
the "true" Okapi function, you find two things: (1) there are several
definitions of the "true" Okapi tf function and (2) it has a few
parameters that you need to set. Depending on the form, if you set
k1=1 and b=1.5, or possibly set c=1, k1=2, and b=0.75, you'll end up
getting this simplified and fairly common version: tf / (tf + 0.5 +
1.5*doclen/avgdoclen).
Run all 25 queries and return the top 1,000 ranked documents for every
query, placing all this data in one single file. (If, for a given
query, there are fewer than 1,000 documents that contain the query
terms, you may return fewer than 1,000 documents.) Thus, your output
file will have at most 25*1,000 = 25,000 lines in it. The lines in
the file must have the following format:
query-number Q0 document-id rank score Exp
where query-number is the number of the
query (the number between 51 to 100, for this project), document-id is
the external ID for the retrieved document (here is a map between internal and external IDs , rank is
the position in the ranked list of this document (1 is the best; 1000 is the
worst; do not include ties), and score is the score that you system
creates for that document against that query. Scores should descend while
rank increases. "Q0" (Q zero) and "Exp" are constants that are used by some
evaluation software. The overall file should be sorted by ascending rank
(so descending score) within ascending query-number
(remember that the queries are not in sorted order in the file).
To perform an evaluation, run
trec_eval [-q] qrel_file results_file
The -q option shows a summary average evaluation across all
queries, followed by individual evaluation results for each query ;
without the -q option, you will see only the summary average. The
trec_eval program provides a wealth of statistics about how well the
uploaded file did for those queries, including average precision,
precision at various recall cut-offs, and so on. You will need some
of those statistics for this project's report, and you may find others
useful. You should evaluate all five runs using both qrel files, for
a total of 10 evaluations.
There are four databases available, each corresponding to various
combinations of stemming and/or stop wording. We suggest that you
intially work with database d=3, corrsponding to an index created with
stemming and stop wording. You may work with the other databases for
additional credit; see below.
Run all five models against this database, creating five output files,
each with approximately 25,000 lines of output (1,000 documents
retrieved for each of 25 queries). In TREC parlance, each output file
is referred to as a "run".
To evaluate a single run, you first need to download trec_eval (also see trec_eval_aprp) and a qrel file
which contains relevance judgments. You will use two different qrel files:
Using a simple tf-idf retrieval scheme, our baseline system achieves a
mean average precision of approximately 0.2 using the TREC qrel file.
If your system is dramatically under-performing that, you probably
have a bug.
Provide a short description of what you did and some analysis of what you learned. This writeup should include at least the following information:
Uninterpolated mean average precision numbers for all 10 evaluations (five runs * two qrel files).
Precision at 10 and 30 documents retrieved for all 10 evaluations.
A comparative analysis of the evaluations obtained with the TREC qrel file and the IR class generated qrel file.
Feel free to try other runs to better
explore the issues, e.g., How does Okapi tf compare to raw tf or other
tf formultions?; What about other kinds of smoothing (or smoothing
parameters) for language modeling or other language modeling
formulations besides query likelihood?; and so on. Also, you may wish
try the other databases to see what effect (lack of) stemming and/or stop wording
has on your results.
Hand in a printed copy of the report. The report should not be much longer
than a dozen pages (if that long). In particular, do not include trec_eval
output directly; instead, select the interesting information and put it in a
nicely formatted table.
This project is worth 250 points. To achieve 200 points, you should do the bare minimum described above. Additional points will be awarded (up to a maximum of 250) for additional analyses such as:
Extra runs, particularly interesting runs that do more than vary parameters, get 15-20 points. The more the better, though a small number of really interesting runs will be worth more than a large number of nearly-identical runs.
Graphs of the recall/precision numbers are worth up to 15 points since they take some time and present a much nicer illustration of the effectiveness, particularly when multiple plots are combined on one graph for comparison.
Analysis beyond the minimum required could result in up to 25 points, though that would be an extreme. Good analysis looks at something that was intriguing and investigates it in more detail. It might require doing some additional runs (which would give points for extra runs, too!). Examples include looking at query-by-query performance to explore what makes some queries fail, or playing with some query processing to get rid of stop structure ("documents will") or to otherwise process the queries.
