ISU535 09X2 Homework 03

Assigned: Wed 15 Jul 2009
Due: Thu 23 Jul 2009

Instructions

1. This assignment is due at the beginning of class on the due date assigned above.

2. In addition to the results requested below, you must submit printouts of any code you wrote that generates those results.

3. If you collaborated with others, you must write down with whom you worked on the assignment. If this changes from problem to problem, then you should write down this information separately with each problem.

Problems

Problem 1. (20 points) Huffman coding.

Consider the following text fragment:

a man, a plan, a canal, panama

Note: This is a famous palindromic sentence --- the letter sequence is the same forwards or backwards.

This text fragment contains 30 total characters (including the six internal space characters and the three commas), and it includes eight unique characters.

• Using the frequency counts associated with the unique characters in this text fragment, compute an empirical probability distribution over the eight characters which appear in the text fragment. In other words, for each character, compute the number of occurences of that character divided by the total number of characters in the text fragment.

• Using the above distribution, compute a Huffman code for the above characters. Show your Huffman tree and give the codes associated with each character. (You may break ties arbitrarily when computing the Huffman code.)

• How many total bits would be required to encode the text fragment with your Huffman code? How many bits per character on average are required?

• How many bits per character are required to encode the text message naively, i.e., using the shortest code with an equal number of bits per character? (This is a trivial upper bound on the coding length.)

• Compute the entropy of the distribution associated with the frequency counts. (This is the information-theoretic lower bound on coding length.)

• How does your Huffman code compare to the upper and lower bounds you computed above? What can you conclude about your Huffman code? Can it be improved? (Hint: Multiply 30 by the entropy; what value do you obtain?.)

Problem 2. (15 points) Lempel-Ziv: Encoding.

Consider your three initials, lower case. (If you do not have a middle name, use the first letter from your first and the first two letters from your last name.) For my name, Evangelos Kanoulas, the three lower case initials are "eka".

• Consult an ASCII table and convert your three initials to their associated bits. At eights bits per ASCII code, you shoud obtain 24 total bits. For example, given my initials, you would obtain:

  011001010110101101100001

• Parse these 24 bits using the Lempel-Ziv parsing algorithm described in class. For each unique substring found, generate a pair corresponding to the prefix back-reference (i.e., how many substrings back is the prefix?) and suffix bit. For my initials, you would obtain:

  0,1,10,01,010,11,0101,101,100, 00, 1

  and

  (0,0), (0,1), (1,0), (3,1), (1,0), (4,1), (2,1), (5,1), (6,0), (9,0), (0,1)

• Now encode these pairs as described in class. To encode the prefix back-references, use ceil(lg(n)) bits to encode the back-reference corresponding to substring n. In other words, use zero bits to encode the first back reference (i.e., don't encode it---you don't need it), use one bit to encode the second back-reference, use two bits to encode the third and fourth back-references, use three bits to encode the fifth through eigth back references, and so on. For the example given above, we obtain:

  (_,0), (0,1), (01,0), (11,1), (001,0), (100,1), (010,1), (101,1), (0110,0), (1001,0), (0000,1)

  for a complete encoding of

  0010101110010100101011011011001001000001

  (Note that the encoded length is longer than the unencoded length. Is this a failure of the Lempel-Ziv compression algorithm? No. Lempel-Ziv is guaranteed to compress at nearly the entropy rate for sufficiently long strings; our example is simply too short. Try running gzip on a file containing only three characters, and see what happens.)

Problem 3. (15 points) Lempel-Ziv: Decoding.

Consider the string:

00110010010010010011011010011100010011010010001010001100001111111

This bit string is the result of encoding a piece of text using the Lempel-Ziv algorithm described above (and in class).

• Parse this bit string to obtain blocks corresponding to (back-reference, suffix bit) pairs. Decode the back-references to obtain these pairs. For example, given the string

  00101011101001001011101000001101001

  we would obtain

  0,01,010,111,0100,1001,0111,0100,00011,01001

  and

  (0,0), (0,1), (1,0), (3,1), (2,0), (4,1), (3,1), (2,0), (1,1), (4,1)

• Reconstruct the original bit string using these (back-reference, suffix bit) pairs. For the example given above, we would obtain:

  011001100110111101101111

• Consult an ASCII table to convert your bit string to a sequence of characters. What string did you obtain? For the above example, we get "foo"; in your case, you should obtain a string of length six which is somehow related to this course.

Problem 4. (10 points) Elias Omega Codes

• Encode the integer 232 using an Elias Omega Code. Show your work.

• Decode the bit string "11100110000101110", assuming that it is the result of encoding an integer using an Elias Omega Code. Show your work.

Problem 5. (40 points) PageRank and Markov Chains

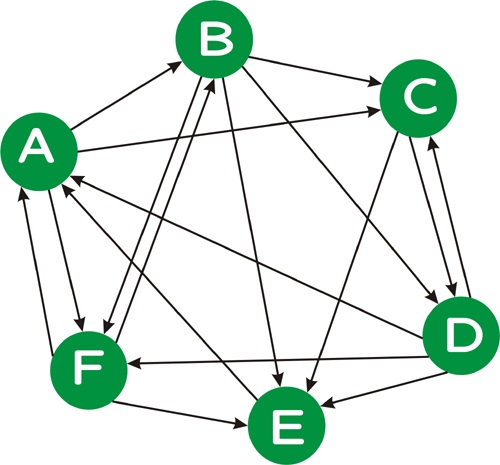

• Treat the above graph as a Markov chain, assuming a uniform distribution on the edges outgoing from each vertex. (In this problem part, you should not use any "teleportation.") Give the state transition matrix P of this Markov chain.

• Compute the stationary ditribution of this Markov Chain. This is a distribution π over the vertices such that

  π = π P.

  Note: In order to solve for π, you will need to solve six equations in six unknowns. Feel free to use a tool such as MatLab, if you like; otherwise, solve the equations by hand, eliminating one variable at a time. Also recall from class that the six equations given from π = π P are not linearly independent; you will need to use five of these equations, together with the equation which specifies that the sum of the π probabilities must be 1.

• Starting with the uniform distribution

  π⁽⁰⁾ = (1/6, 1/6, 1/6, 1/6, 1/6, 1/6)

  as an initial "guess", multiply π⁽⁰⁾ by P to obtain a new "guess" π⁽¹⁾. Repeat this proces, obtaining π⁽ⁿ⁾ from π^(n-1) via

  π⁽ⁿ⁾ = π^(n-1) P

  until each of the π values are accurate within two decimal places (i.e, ± 0.01) of the values you solved for above. How many iterations are required?

  Note: You should probably write a short program to do this, and this program will be useful for the problem part below as well.

• Consider the PageRank formula as described in class and at the Wikipedia PageRank page. In particular, consider the following PageRank formula described on that page



  (formula image courtesy Wikipedia). Let d = 0.85 be the damping factor.

  • Demonstrate that for the graph above, this formula is equivalent to computing the stationary distribution of a Markov chain described by transition matrix P', where each entry p'_ij in P' is obtained from the corresponding entry p_ij in P as follows:

    p'_ij = (1-d)/N + d p_ij.

  • Using the matrix P' and your code from the problem part above, solve for the PageRank values of each vertex. (Start with a uniform distribution for π⁽⁰⁾ and repeatedly multiply by P' until the π values "converge", e.g., they no longer change in the second decimal place). How do the PageRank values compare to the original stationary distribution values you computed above (and why)?
